Overview: | |
|
|
|
|
 |
Key Features:

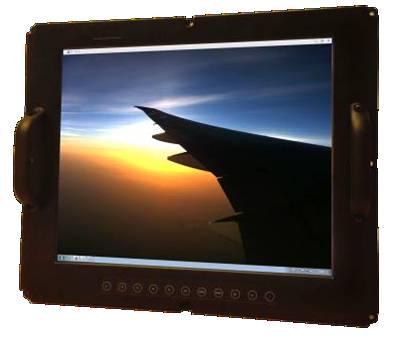

- Our Panel PCs are fanless with high brightness and low power consumption. This is the best solution for on-board applications in harsh environments. They are built on one compact and rugged chassis and include a powerful processor running with standard operating systems Windows, QNX, Linux
- Our panels PCs adapt any specific requirements such as addition of acquisition or extension card with various formats
- Our panel PCs exist in 10’’ 12", 15 ", 17" & 19” versions format 4: 3 but also «Wide» (formats 16: 9 or 16:10).
- Type of display : Wall mount, Console mount
|
| |
Technical Specification: |
| LCD resistive touch screen: |
Intel Atom & i7 series processor |
| Ports: |
2 x Intel GbE + 2 x USB 3.0 + 1 x RS232 + 1 x RS485 + 1 x audio channel |
| Operating systems: |
Windows 7 Pro, 7 Embedded QNX6.5, Linux Ubuntu 12.04 (other distribution on request) |
| Climatic and vibration qualification: |
MIL STD 810F |
| CEM qualification: |
MIL-STD-461E |
| DC: |
12 Vdc – 36 Vdc, from 30 W to 45 W max |
| AC: |
90 Vac – 264 Vac, from 30 W to 45 W max |
| Extended temperature range : |
-20°C + 70°C |
|
|
|
|
|
|
|
|
