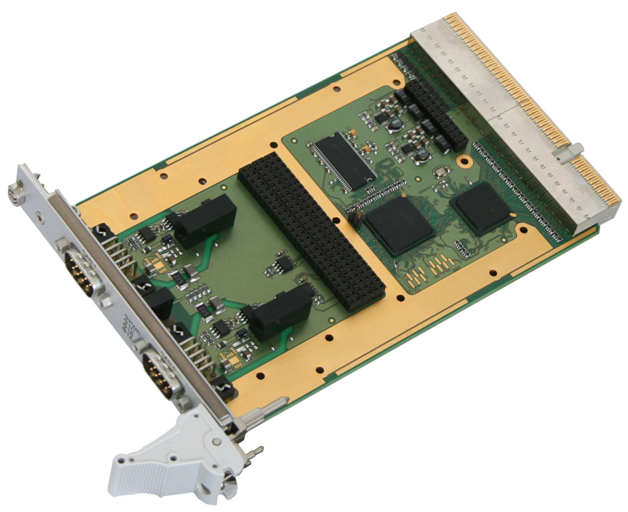

Overview:

• High-Speed CAN Interfaces bus
• Robust and Easy to Handle
• Advanced Diagnostics and Time stamping

Key Features:

• CAN ISO 11898-1 protocol compatibility
• 11-bit and 29-bit CAN IDs
• Bit rates from 10 kbit/s up to 1 Mbit/s supported
• Receive buffer (64 CAN messages)
• Complete access to CAN error counters
• Programmable error warning limit
• Error code capture register
• Error interrupt for each CAN bus error
• Arbitration lost interrupt with detailed bit position
• Single-shot transmission (no re-transmission)
• Listen only mode (no acknowledge, no active error flags)
• Automatic bit rate detection (software supported bit rate detection)
• Acceptance filter (4-byte code, 4-byte mask)
• Self-reception mode (reception of ‘own’ messages)
• Busload measurement

Multiple Higher Level Protocols:

• CANopen Master- and Slave-Stack
• J1939
• ARINC825
